WhiteSpace:

WhiteSpace
         ::= ( Space | Comment )+

referenced by:

• Values

Space:

Space    ::= SpaceChar+

referenced by:

• B64_pad
• Base16Binary
• Base16Char
• Base64Binary
• Base64Char
• Name
• Name-Value-Pair
• WhiteSpace

SpaceChar:

SpaceChar
         ::= #x0009
           | #x000A
           | #x000D
           | #x0020

referenced by:

• Space

Comment:

Comment  ::= ';' [^#x000A#x000D]*

referenced by:

• WhiteSpace

Values:

Values   ::= Value? ( WhiteSpace Value )* WhiteSpace?

no references

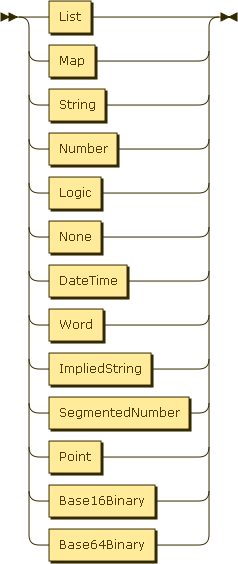

Value:

Value    ::= List
           | Map
           | String
           | Number
           | Logic
           | None
           | DateTime
           | Word
           | ImpliedString
           | SegmentedNumber
           | Point
           | Base16Binary
           | Base64Binary

referenced by:

• List
• Name-Value-Pair
• Values

List:

List     ::= '[' Value* ']'

referenced by:

• Value

Map:

Map      ::= '#[' Name-Value-Pair* ']'

referenced by:

• Value

Name-Value-Pair:

Name-Value-Pair
         ::= Name Space Value

referenced by:

• Map

Name:

Name     ::= Word ':' Space

referenced by:

• Name-Value-Pair

Logic:

Logic    ::= 'true'
           | 'false'
           | 'on'
           | 'off'
           | 'yes'
           | 'no'

referenced by:

• Value

None:

None     ::= 'none'

referenced by:

• Value

String:

String   ::= QuotedString

referenced by:

• Value

QuotedString:

QuotedString
         ::= '"' ( QuotedStringChar | EscapedChar )* '"'

referenced by:

• String

QuotedStringChar:

QuotedStringChar
         ::= [^#x0000#x000A"^]

referenced by:

• QuotedString

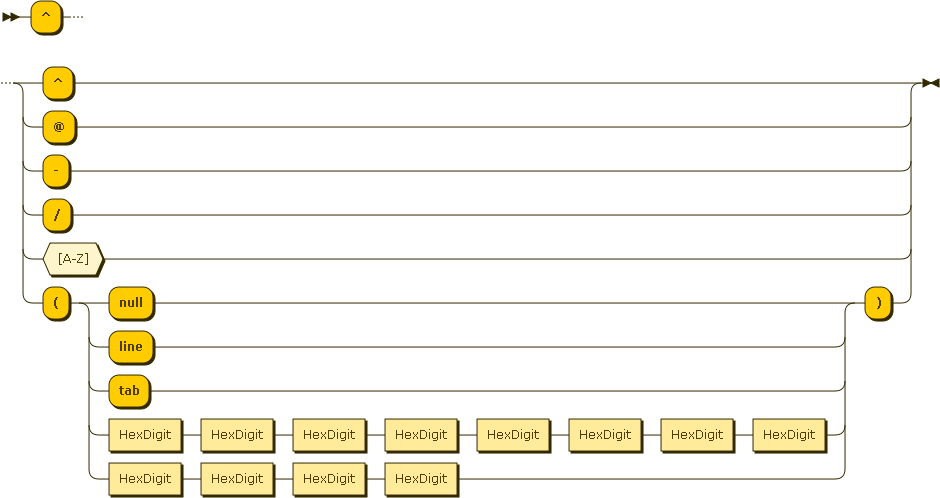

EscapedChar:

EscapedChar
         ::= '^' ( '^' | '@' | '-' | '/' | [A-Z] | '(' ( 'null' | 'line' | 'tab' | HexDigit HexDigit HexDigit HexDigit HexDigit HexDigit HexDigit HexDigit | HexDigit HexDigit HexDigit HexDigit ) ')' )

referenced by:

• QuotedString

Sign:

Sign     ::= '+'
           | '-'

referenced by:

• CharSign
• ExponentPart
• Integer
• Time
• Time-NumOffset

Digit:

Digit    ::= [0-9]

referenced by:

• Base64Char
• DecimalPart
• ExponentPart
• FourDigits
• Integer
• Time-SecFrac
• TwoDigits
• WordFirstChar

Integer:

Integer  ::= Sign? Digit+

referenced by:

• DecimalExponent
• Number
• SegNumSegment
• SegmentedNumber

HexDigit:

HexDigit ::= [0-9a-fA-F]

referenced by:

• Base16Char
• EscapedChar

DecimalSeparator:

DecimalSeparator
         ::= '.'

referenced by:

• Time-SecFrac

DecimalExponent:

DecimalExponent
         ::= 'e'
           | 'E' Integer

no references

DecimalPart:

DecimalPart
         ::= '.' Digit*

referenced by:

• Number

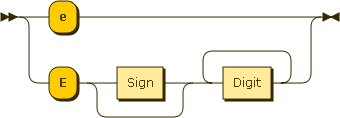

ExponentPart:

ExponentPart
         ::= 'e'
           | 'E' Sign? Digit+

referenced by:

• Number

Number:

Number   ::= Integer DecimalPart ExponentPart

referenced by:

• Axis
• Point
• Value

CharSign:

CharSign ::= Sign

no references

Alpha:

Alpha    ::= [a-zA-Z]

referenced by:

• Base64Char

WordFirstChar:

WordFirstChar
         ::= [#x0021-#x007E] - ( Digit | [{}"()/\@#$%^,:;<>] | '[' | ']' | "'" )

referenced by:

• ImpliedString
• Word
• WordChar

WordChar:

WordChar ::= WordFirstChar
           | [0-9']

referenced by:

• ImpliedString
• Word

Word:

Word     ::= WordFirstChar WordChar*

referenced by:

• Name
• Value

ImpliedString:

ImpliedString
         ::= WordFirstChar WordChar*

referenced by:

• Value

ImpliedStringInnerChar:

ImpliedStringInnerChar
         ::= WordInnerChar
           | [/\@#$%,:']

no references

SegmentedNumber:

SegmentedNumber
         ::= Integer SegNumSegment SegNumSegment+

referenced by:

• Value

SegNumSegment:

SegNumSegment
         ::= '.' Integer

referenced by:

• SegmentedNumber

Point:

Point    ::= Number Axis+

referenced by:

• Value

Axis:

Axis     ::= 'x' Number

referenced by:

• Point

FourDigits:

FourDigits
         ::= Digit Digit Digit Digit

referenced by:

• Date-FullYear

TwoDigits:

TwoDigits
         ::= Digit Digit

referenced by:

• Date-Month
• Date-MonthDay
• Time-Hour
• Time-Minute
• Time-Second

DateSegmentSep:

DateSegmentSep
         ::= '-'

no references

TimeSegmentSep:

TimeSegmentSep
         ::= ':'

no references

DateTimeSep:

DateTimeSep
         ::= '/'
           | 'T'

referenced by:

• DateTime

Date-FullYear:

Date-FullYear
         ::= FourDigits

referenced by:

• Date
• FullDate

Date-Month:

Date-Month
         ::= TwoDigits

referenced by:

• Date
• FullDate

Date-MonthDay:

Date-MonthDay
         ::= TwoDigits

referenced by:

• Date
• FullDate

Time-Hour:

Time-Hour
         ::= TwoDigits

referenced by:

• Partial-Time
• Time
• Time-NumOffset

Time-Minute:

Time-Minute
         ::= TwoDigits

referenced by:

• Partial-Time
• Time
• Time-NumOffset

Time-Second:

Time-Second
         ::= TwoDigits

referenced by:

• Partial-Time
• Time

Time-SecFrac:

Time-SecFrac
         ::= DecimalSeparator Digit?

referenced by:

• Partial-Time
• Time

Time-NumOffset:

Time-NumOffset
         ::= Sign Time-Hour ':' Time-Minute

referenced by:

• Time-Zone

Time-Zone:

Time-Zone
         ::= 'Z'
           | Time-NumOffset

no references

Partial-Time:

Partial-Time
         ::= Time-Hour ':' Time-Minute ':' Time-Second Time-SecFrac?

referenced by:

• FullTime

FullDate:

FullDate ::= Date-FullYear '-' Date-Month '-' Date-MonthDay

referenced by:

• DateTime

FullTime:

FullTime ::= Partial-Time time-Zone

referenced by:

• DateTime

Date:

Date     ::= Date-FullYear '-' Date-Month '-' Date-MonthDay

no references

Time:

Time     ::= Sign? Time-Hour ':' Time-Minute ( ':' Time-Second Time-SecFrac? )?

no references

DateTime:

DateTime ::= FullDate DateTimeSep FullTime

referenced by:

• Value

Base16Char:

Base16Char
         ::= HexDigit
           | Space

referenced by:

• Base16Binary

Base64Char:

Base64Char
         ::= Alpha
           | Digit
           | '+'
           | '/'
           | Space

referenced by:

• B64_2
• B64_3
• B64_4

Base16Binary:

Base16Binary
         ::= '16#{' Space* ( Base16Char Base16Char )* '}'

referenced by:

• Value

B64_4:

B64_4    ::= Base64Char Base64Char Base64Char Base64Char

referenced by:

• Base64Binary

B64_3:

B64_3    ::= Base64Char Base64Char Base64Char B64_pad

referenced by:

• Base64Binary

B64_2:

B64_2    ::= Base64Char Base64Char B64_pad B64_pad

referenced by:

• Base64Binary

B64_pad:

B64_pad  ::= '=' Space*

referenced by:

• B64_2
• B64_3

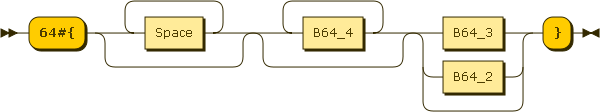

Base64Binary:

Base64Binary
         ::= '64#{' Space* B64_4* ( B64_3 | B64_2 )? '}'

referenced by:

• Value
